Tutorial on Replacing Fan of a BOXⅡ Miner

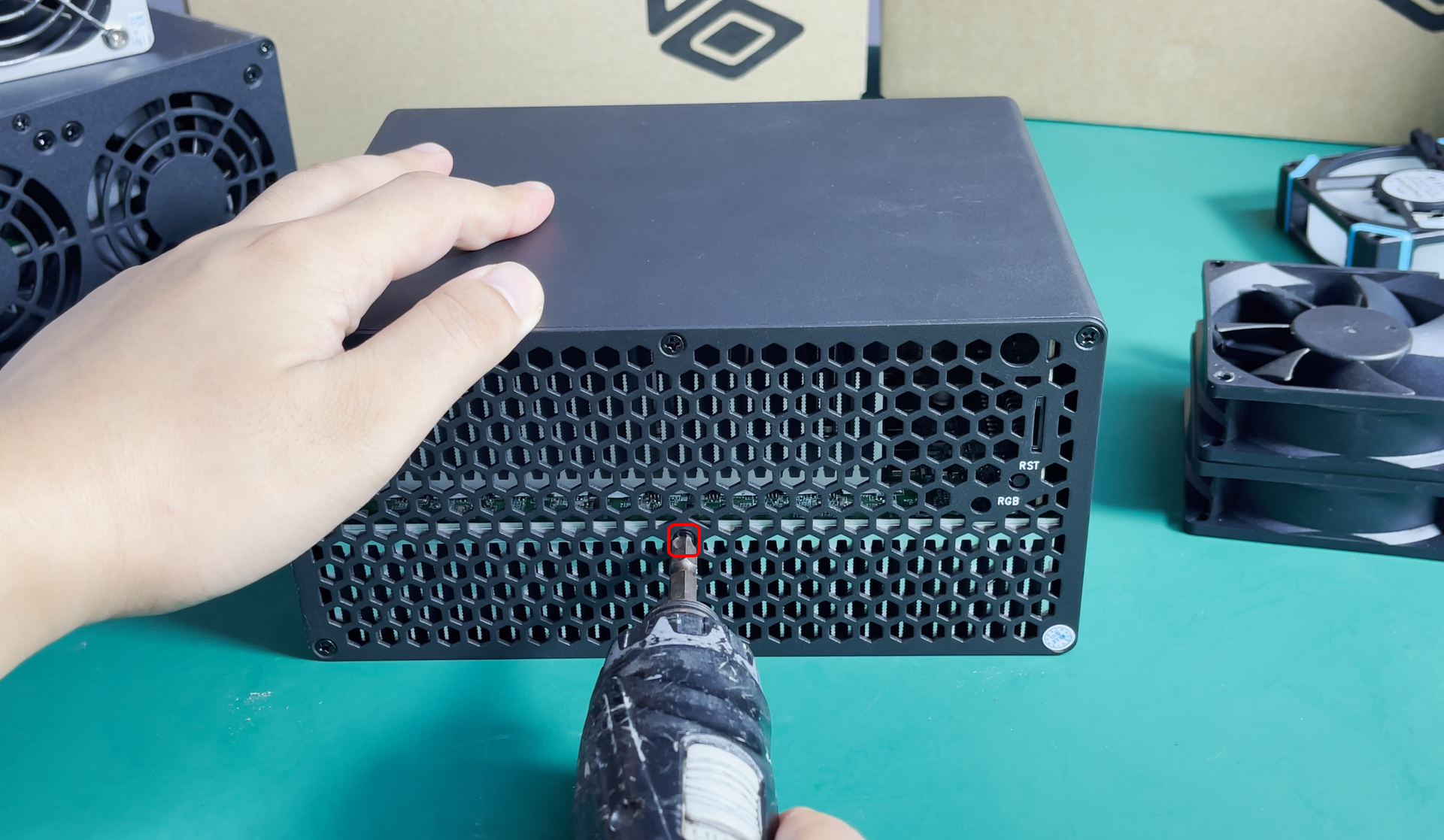

1.1 Remove the screw in the center of the miner's hash board (as shown in Figure 1).

figure 1

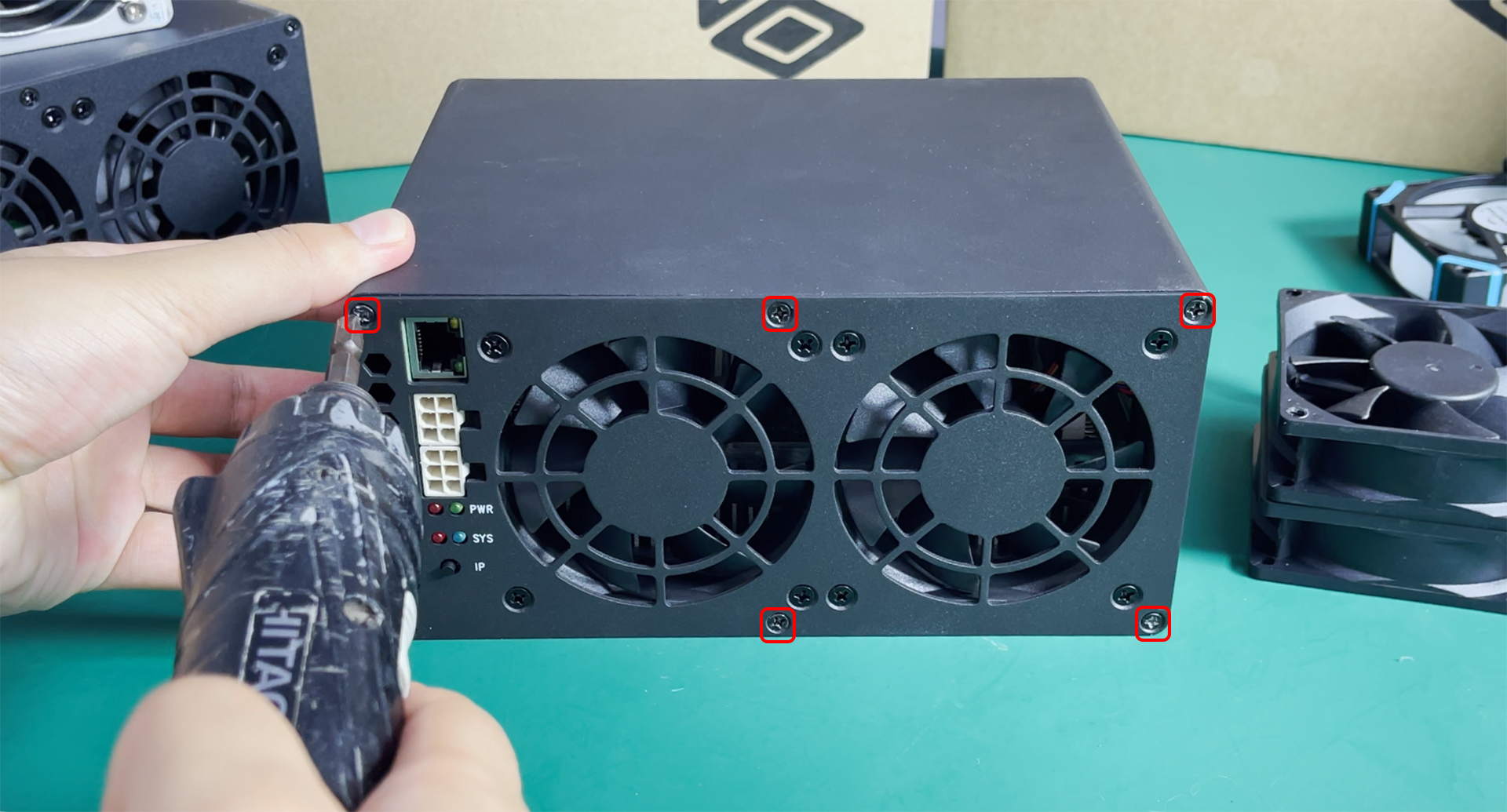

1.2 Remove the screws on the fan surface, pay attention to only remove the outer six screws (as shown in Figure 2).

figure 2

Figure 3

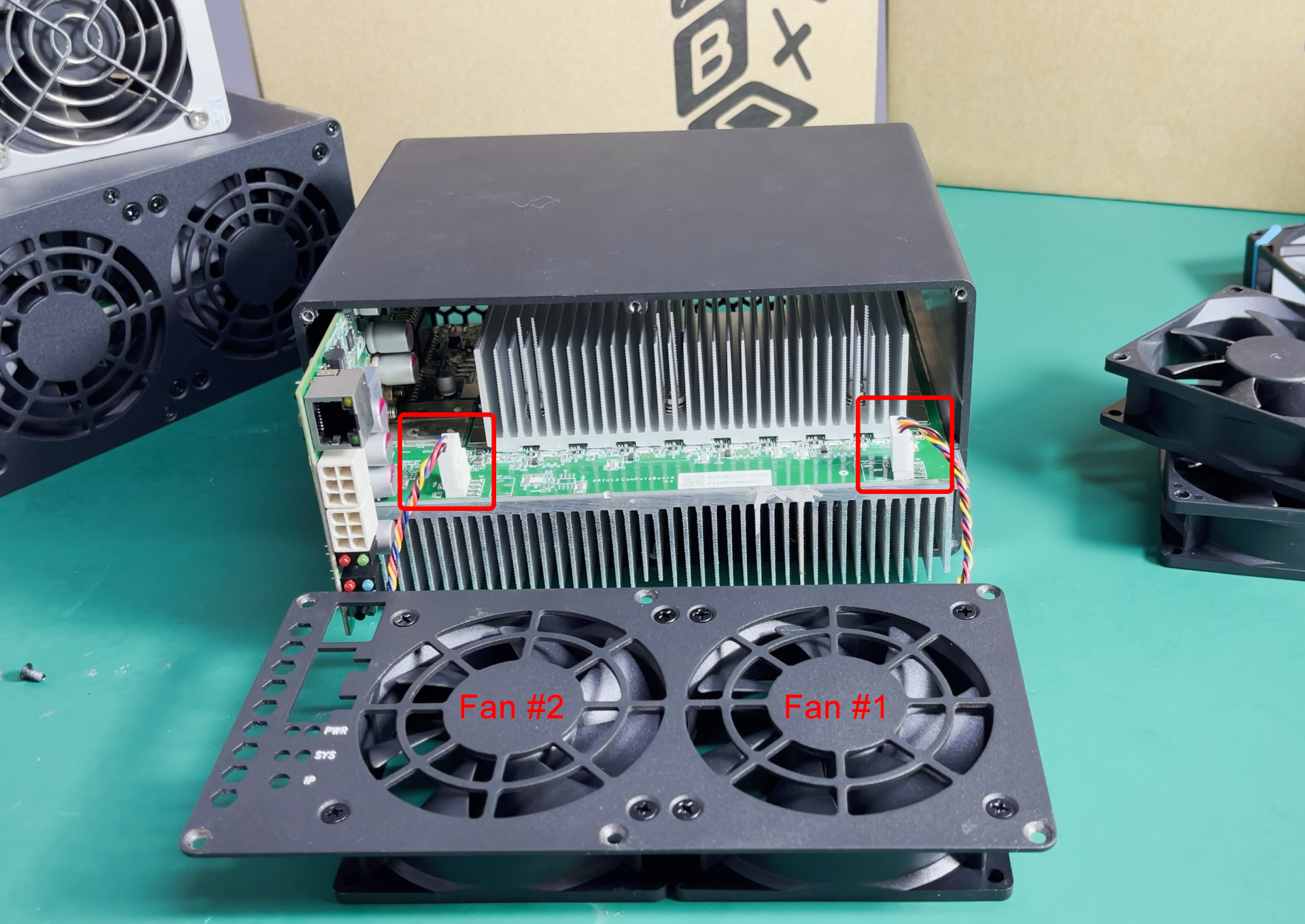

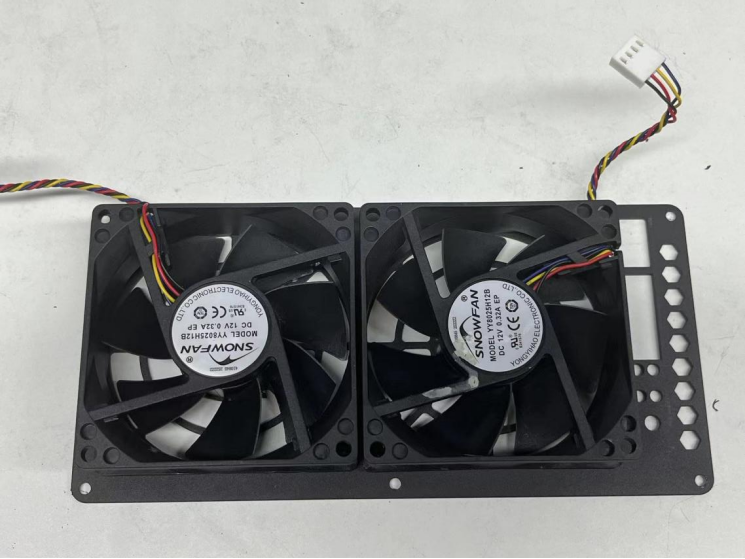

1.3 Slowly pull out the hash board and fans. Make sure the position of the bad fans, pls take the following picture for reference. After-sales staff refer to "fan #1, fan #2" or "fan 1, fan 2" as shown in the Figure4 by Fan #1 and Fan #2.

figure 4

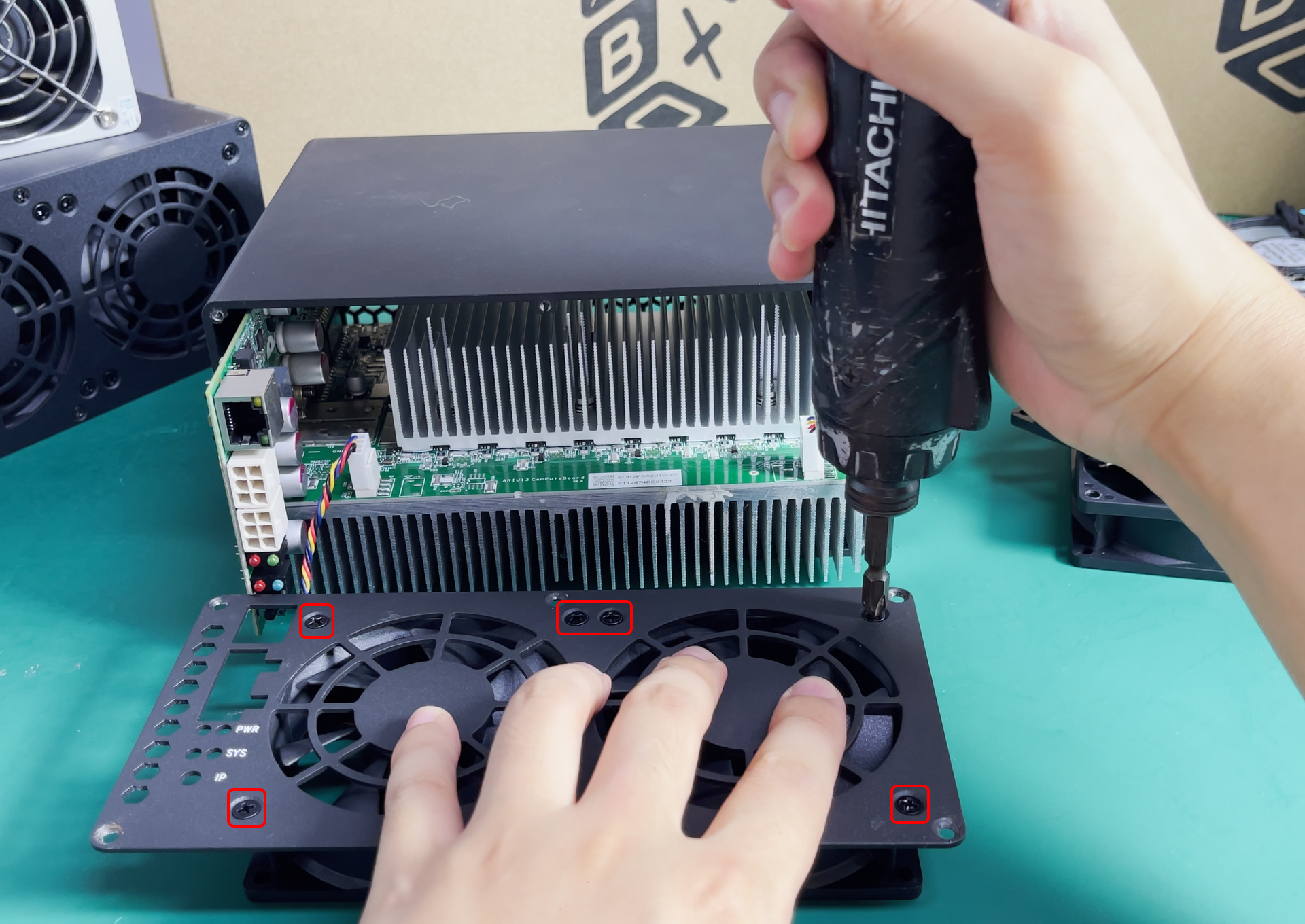

1.4 Unscrew the defective fan(s) (as shown in Figure 5).

figure 5

1.5 Unplug the row lines (as shown in Figure 6).

figure 6

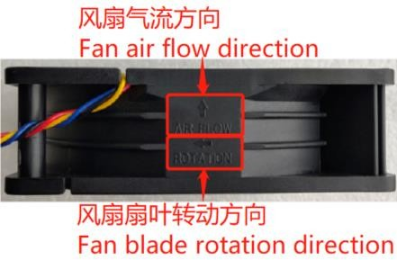

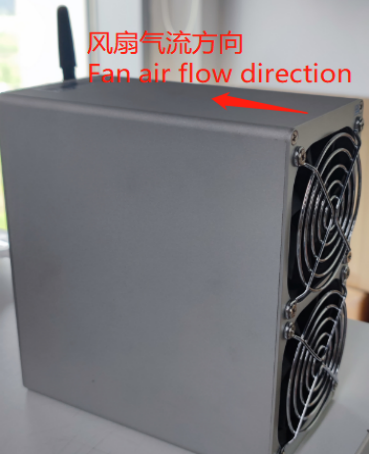

Put the new fans into the correct position, then install. You can take the above tutorial for reference. Remember to confirm the airflow direction when installing. TIP: the air flow arrow should point to BOX inside.

Installing the fan in the wrong direction may lead to the miner shutting down at high temperatures, and even causing irreversible damage!

2.1 Please refer to Figure 7 and observe the symbol next to the fan. When installing the fan on the metal plate, make sure that the "AIR FLOW" arrow points towards the inside of the miner, as shown in Figure 7. Install the eight screws of the two fans in their respective positions, as shown in Figure 8. Figure 9 shows that you have already installed the fan on the metal plate.

figure 7

figure 8

figure 9

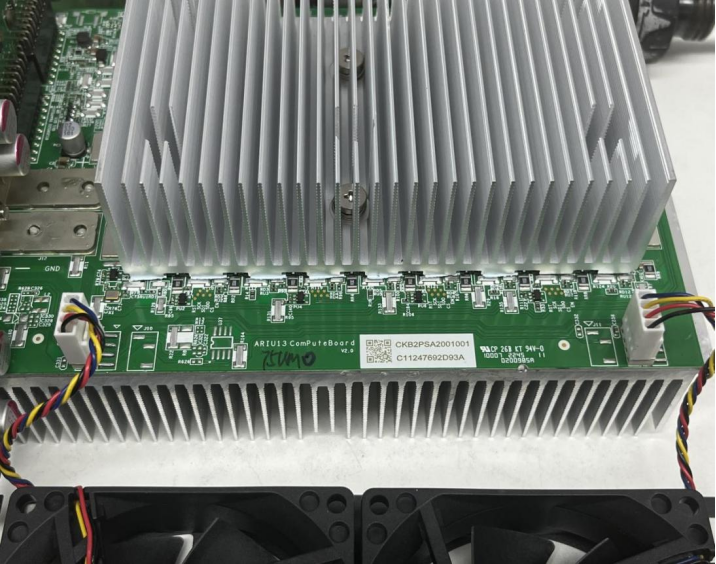

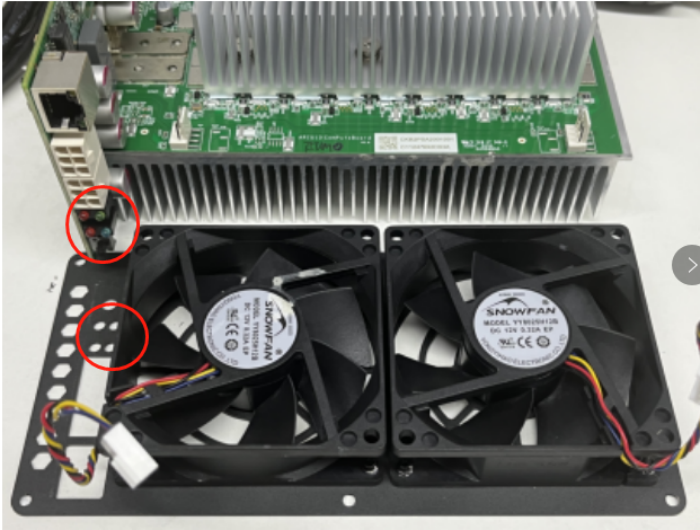

2.2 Plug the fan connector into the hash board, making sure that the indicator light and the holes on the metal plate align. Refer to Figure 10. Figure 11 shows the completed installation of the fan.

figure 10

figure 11

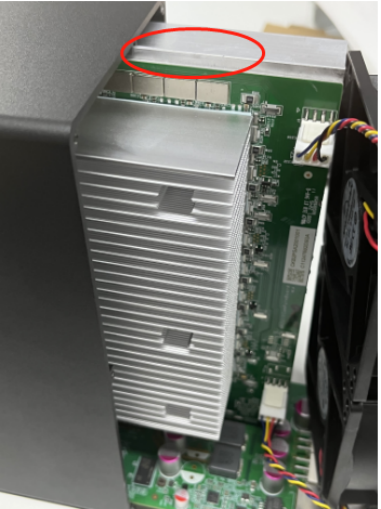

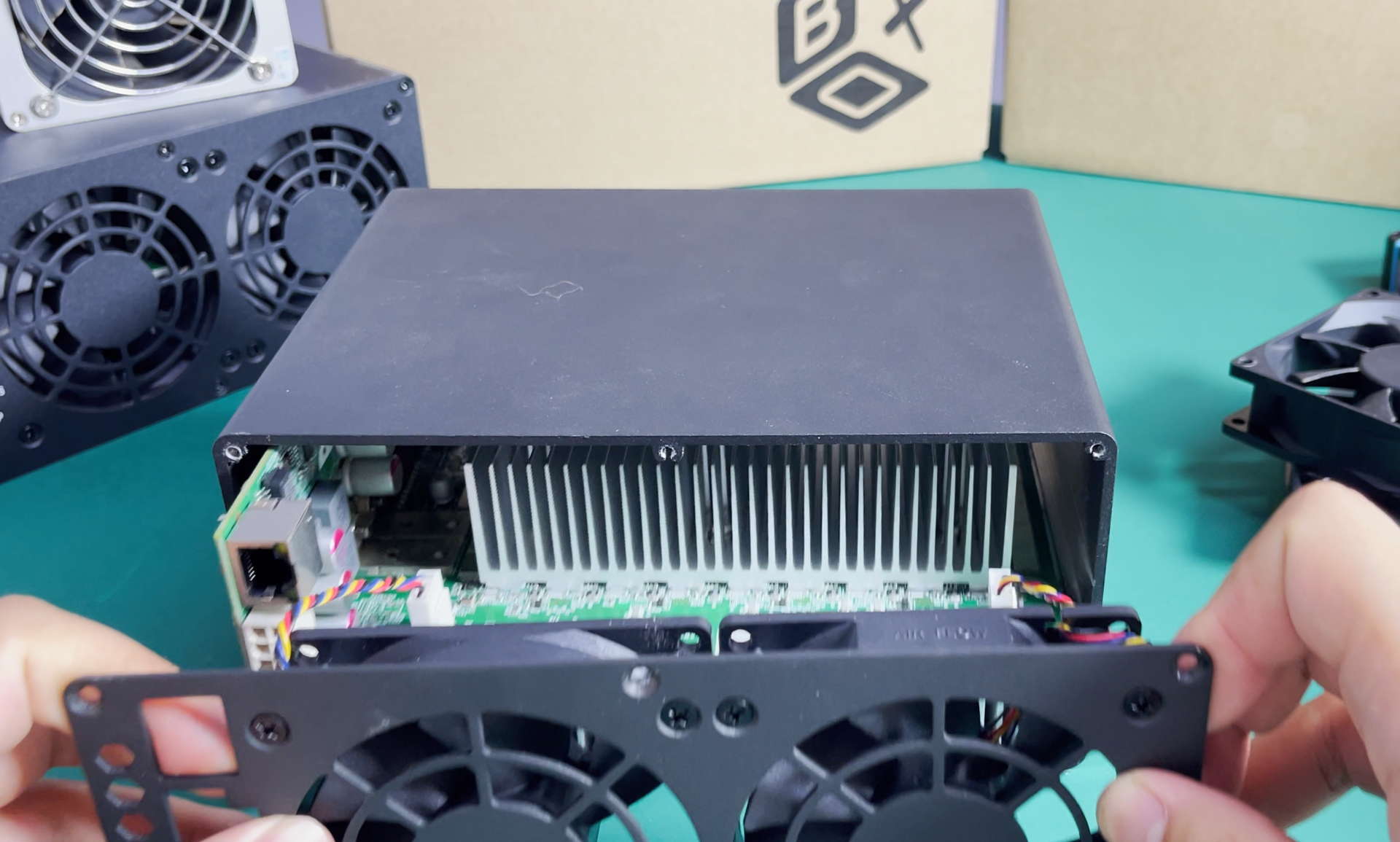

2.3 Install the assembled fan and hash board according to Figure 12, ensuring that the hash board aligns and fits snugly into the groove.

figure 12

2.4 Install the 6 screws on the fan surface and the 1 screw on the hash board surface. The fan installation is now complete, as shown in Figure 13.
