Note:
1. Disassembling the miner without permission of after-sales staff will void your warranty (check my warranty).
2. Ensure that the installation is done correctly before restarting the miner.
3. Incorrect installation may void your warranty.
1. Remove the hash board from the miner.

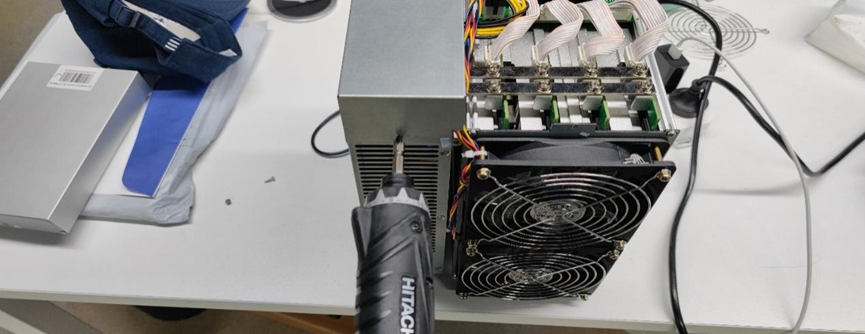

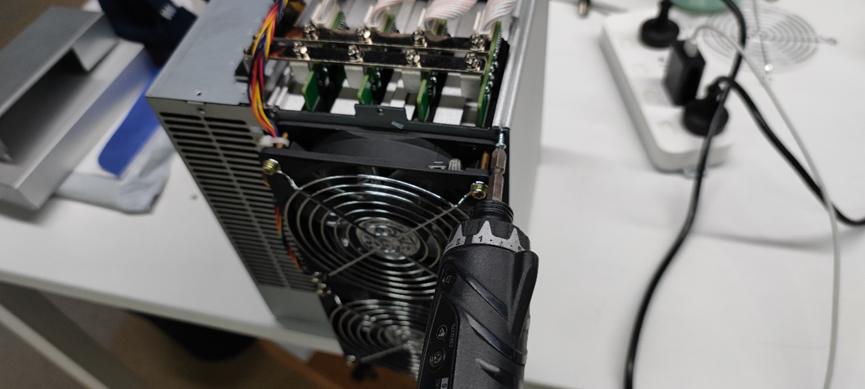

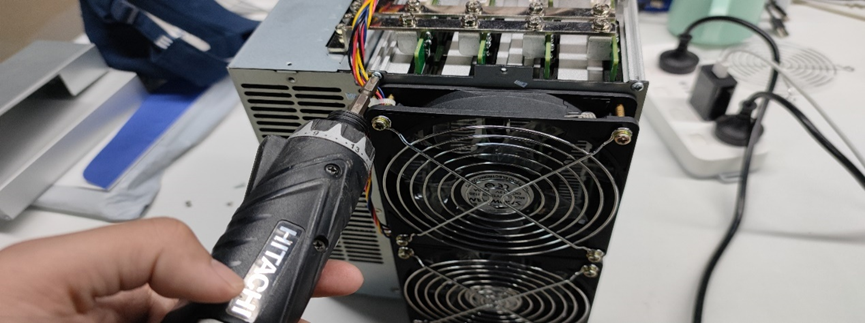

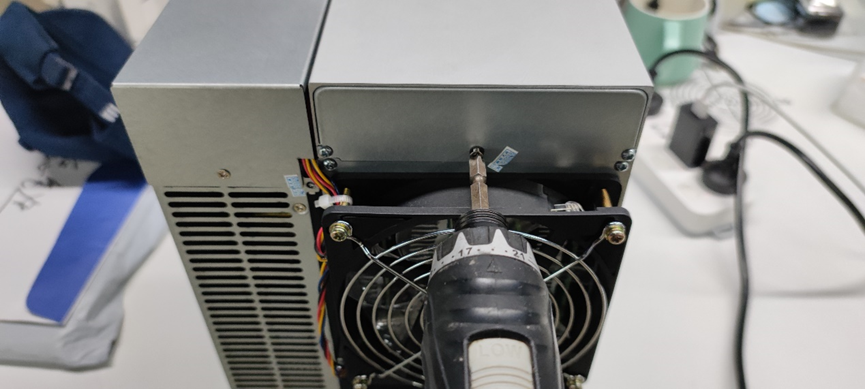

1.1 Remove the screws located above the fans at the back of the miner.

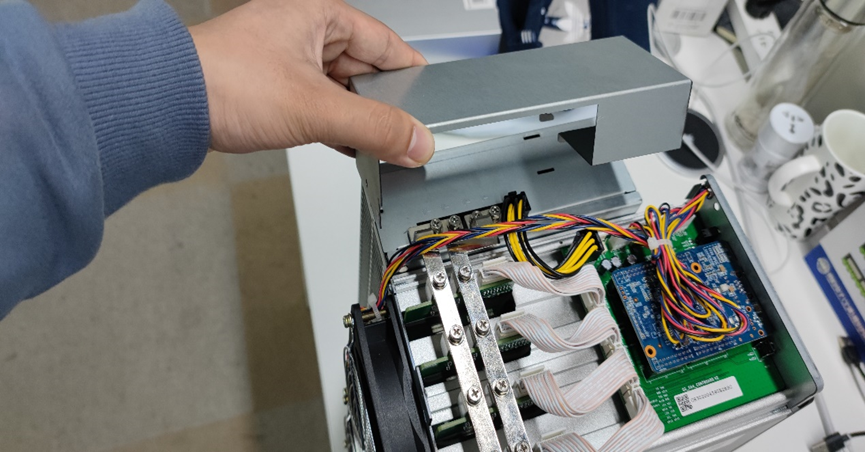

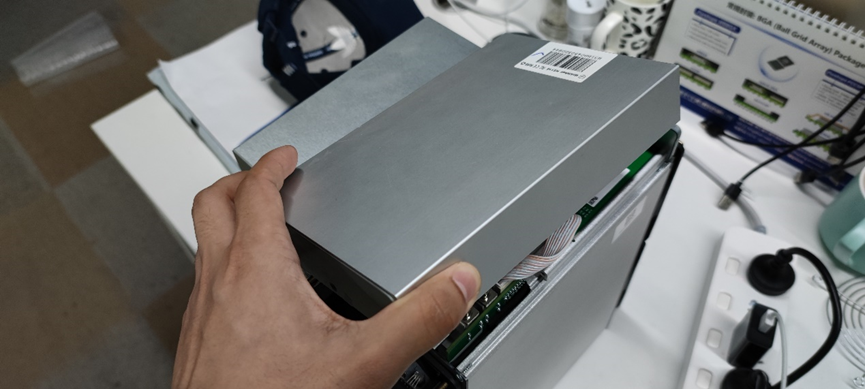

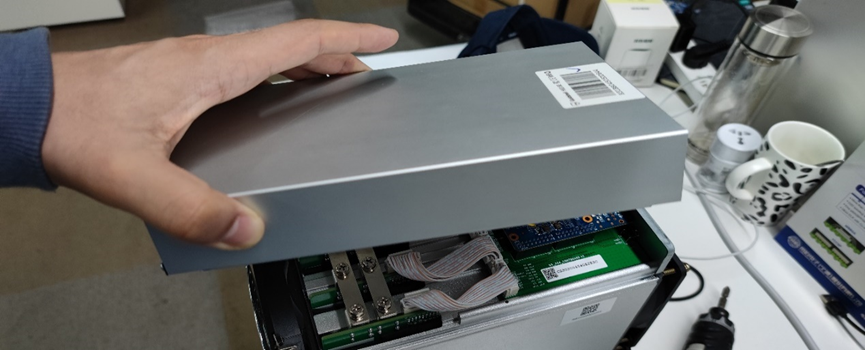

1.2 Remove the top case.

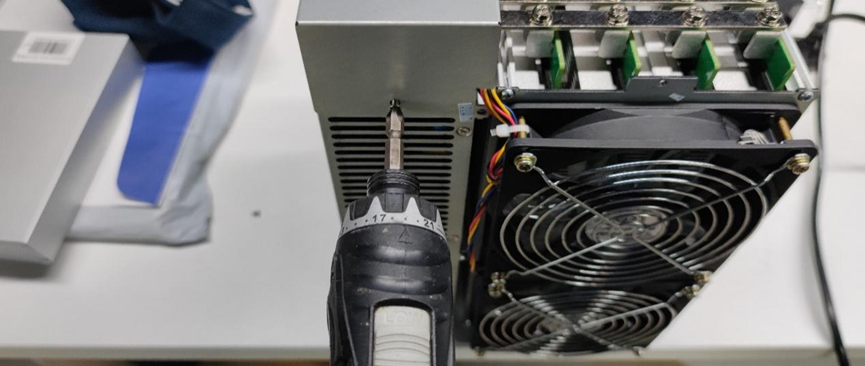

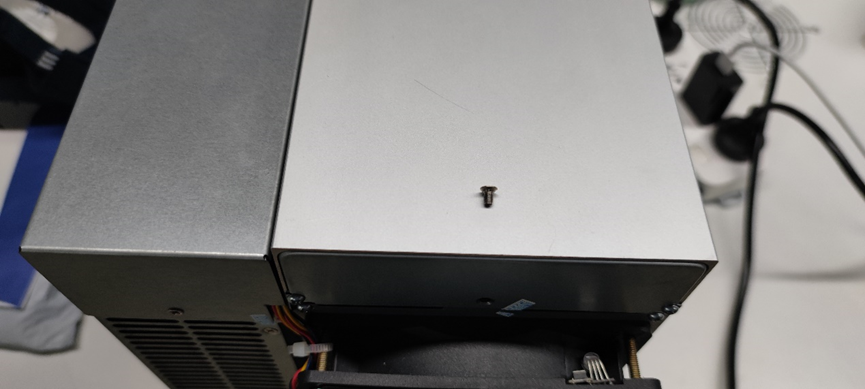

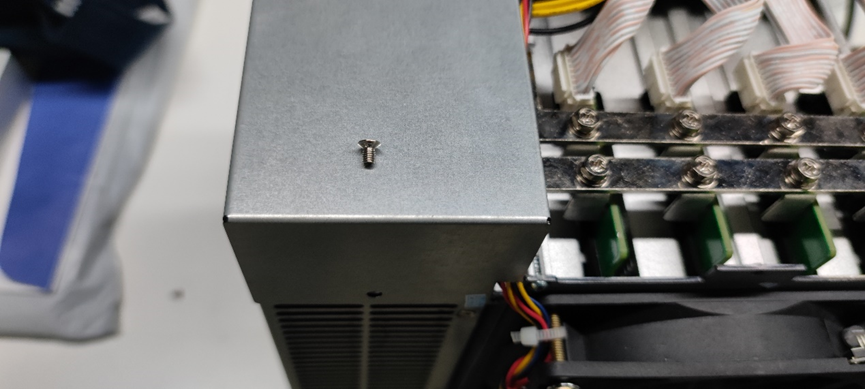

1.3 Remove the screws at the back of the power supply.

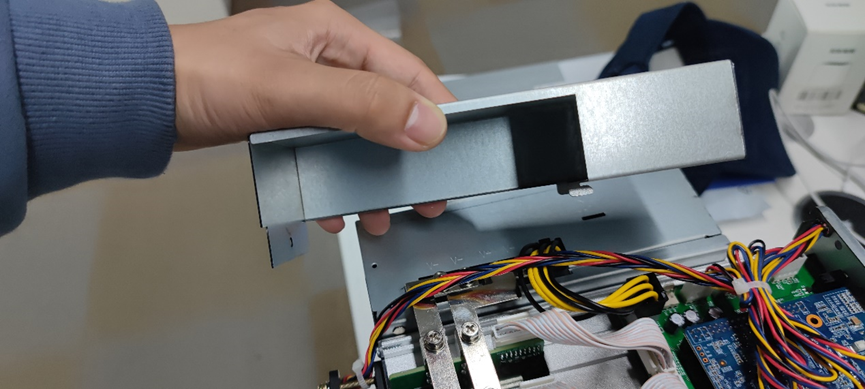

1.4 Remove the cover of the power supply. You may need to pull a little back then lift it up.

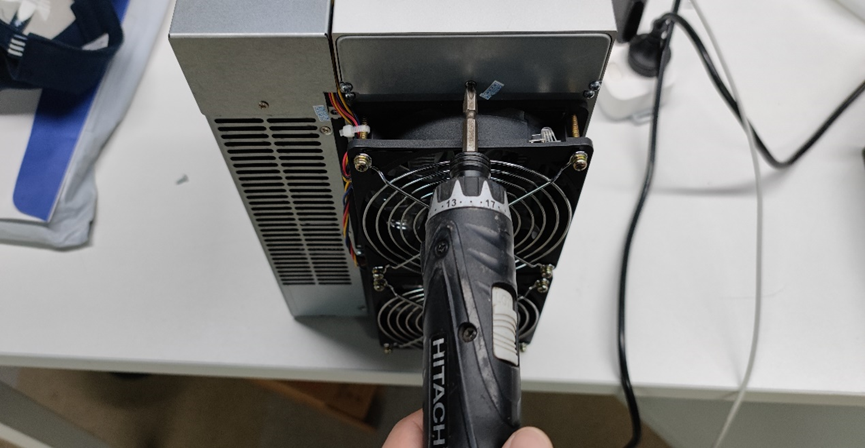

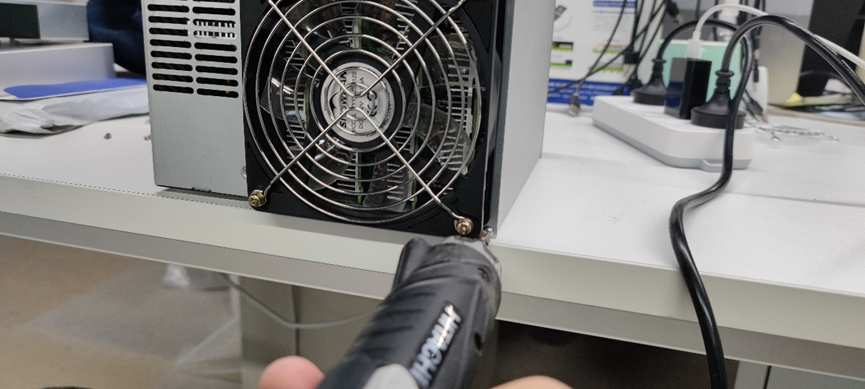

1.5 Remove the screws at the back of the miner.

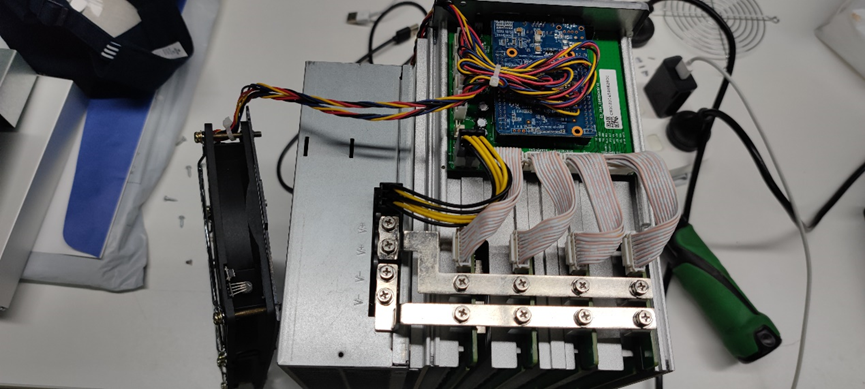

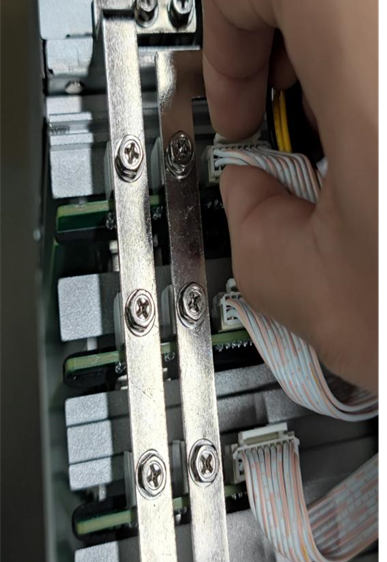

1.6 Unplug the ribbon cable(s).

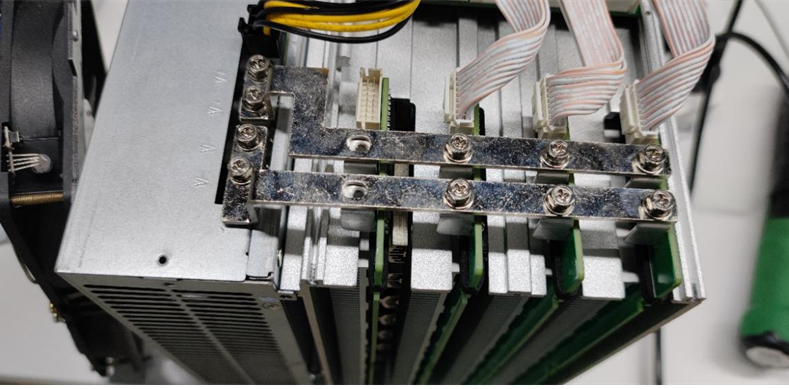

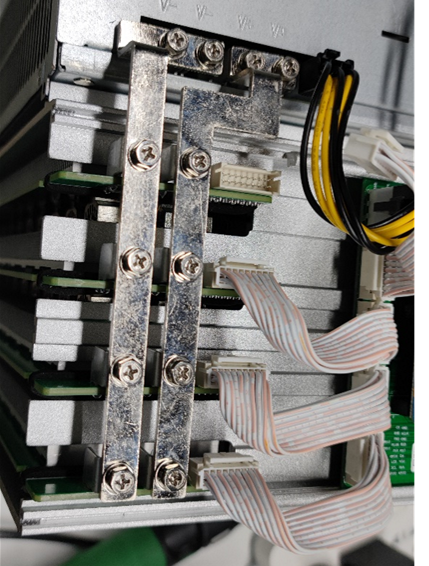

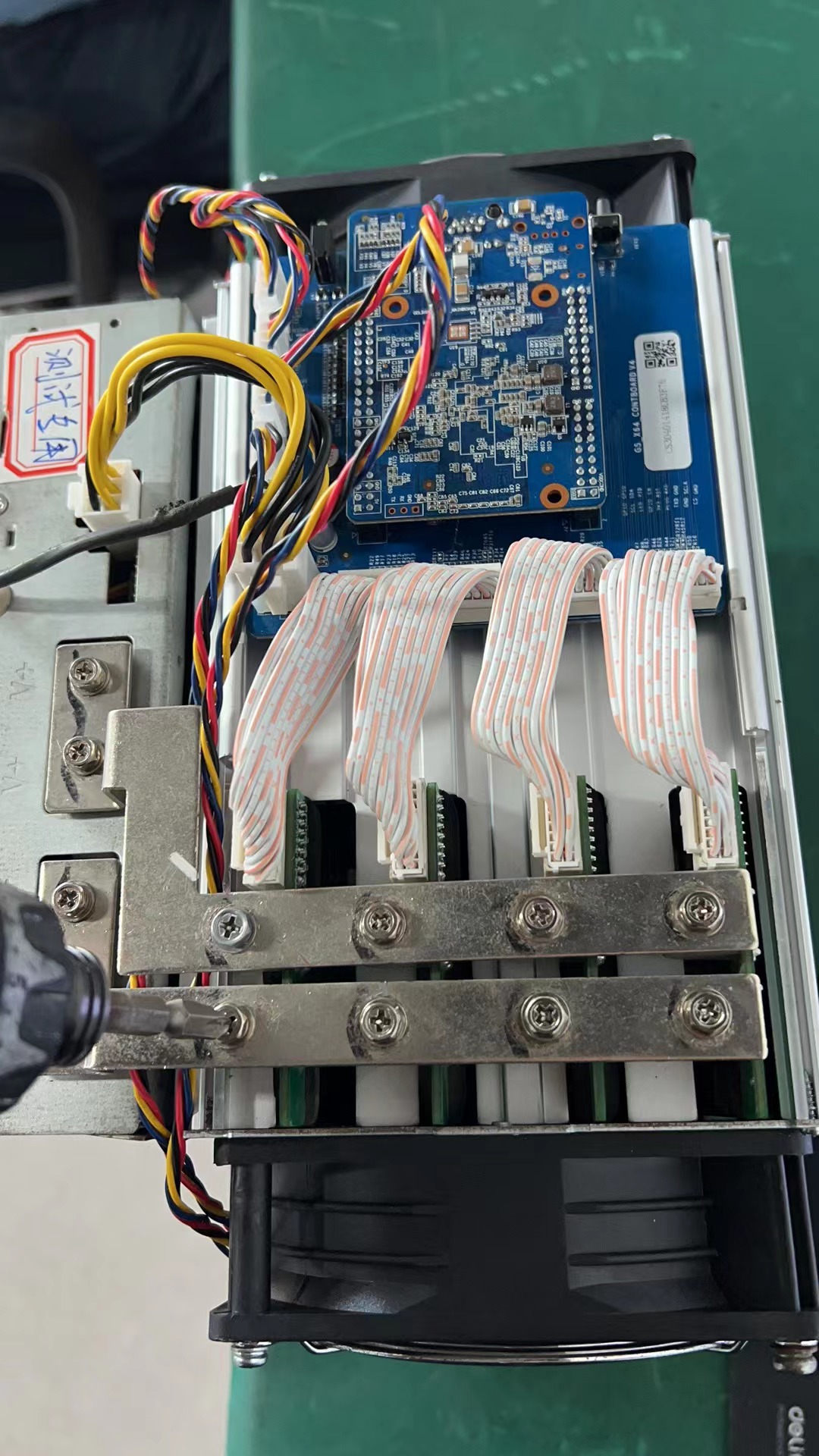

1.7 Remove screws on the mental bar.

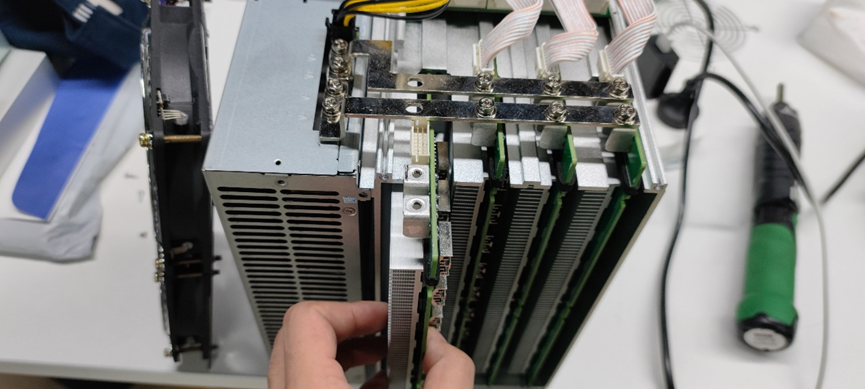

1.8 Take out the hash board.

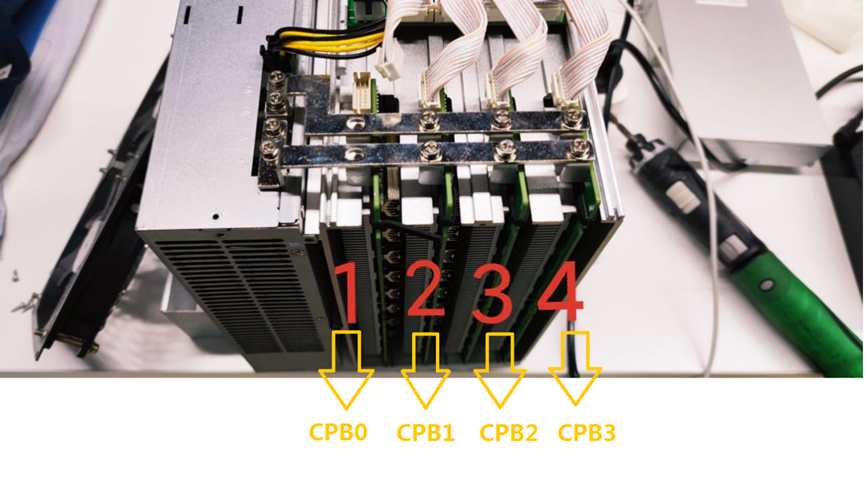

After-sales staff refer to "Hashboard #1, Hashboard #2, Hashboard #3, Hashboard #4" or "Hashboard 1, Hashboard 2, Hashboard 3, Hashboard 4" as shown in the below figure by numbers 1, 2, 3, and 4. The position of the hash board on the miner dashboard is illustrated below:
2. Install the hash board.
2.1 Put the hash board in the correct position.
2.2 Tighten the screws on the mental bar.
2.3 Plug the ribbon cable(s).
